A+B-AB Algebraic Boolean

A new way to calculate with Boolean.

Intro

This is a sort of Boolean Math I started developing a longer time ago when I was active in the search for optimal Golomb ruler. I was in contact with a group that searched those rulers by distributing the work on multiple people and computers over the internet. This was before distributed computing was common and it was before distributed.net picked up this search.  It was the time when the golomb ruler search program GVANT was developed by Mark Garry and David Vanderschel  and later GARSP where I could do a significant contribution. GARSP = Garrys adaption of Rado's search principle. Rado was my internet  alias that I used at that time and is deviated from the first letters of my first and last name.

My original idea of this math was to use it to calculate optimal Golomb rulers directly rather than haveing to find them through an intensive brute force search. A Golomb ruler is a special set of natural numbers. The basic idea was to express those natural numbers in binary form and caclulate/generate the distances on a binary level directly using boolean operations. Every distance can be represented through a boolean expression containing the binary unknown of the base distances. If I can replace the boolean values with real numbers and transform the Boolean operations into a classic algebra arithmetic it should be possible to generate enough equations to solve it for the binary unkown. This lead me to what I will present you here.

I did one major mistake at that time and that was the idea that I have to generate equations and solve the problem in the classic algebra space when I go with my Boolean Math whereas in true if you stuck born finish the path I took and transform the end back to the classic Boolean you end up with the solution. I figured this out lately when I was looking on my Boolean Math again for a problem in cryptography.


Equivalence

Everything I do with my new alternative Boolean Math (example solving for an optimal Golomb ruler) can be done with classic Boolean algebra too. There is no advantage in what is possible. It's just a different way to deal with Boolean. My alternative Boolean Math is simpler to handle and manage  on a computer. Just think about how costy an inversion of a Boolean expression with multiple terms is. In my alternative Boolean Math it is just a 1 - (the expression).

However you do not spare space. If you have 8 Unknown you will have to deal with up  to 2^8 = 256 terms. And you will not spare calculation time because a logic operation like AND or OR contains a multiplication which means you have to multiply  up to 256 * 256 terms in case of 8 unknown. Although those are not really multiplication you do like you will see later.


Classic Boolean

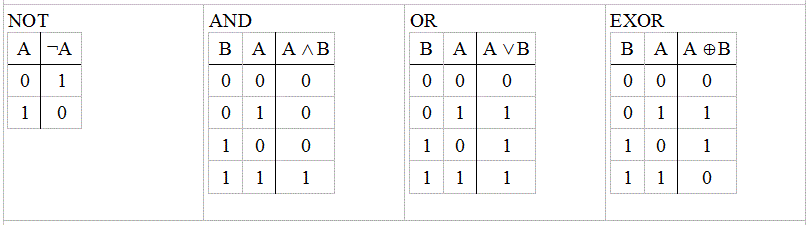

In classic Boolean we know this logic Operations:


where as in this Table the number  0 represents FALSE and the number 1 represents TRUE


New Algebraic Boolean

I have no idea how to best call it.

We  replace the Calssic Boolean Operation and Variable with algebraic operations and variables. First we replace the Boolean values with real number values like this:



The value transformation  doesn't have to be like this. We could as well transfer False into -1 and True into +1. However like we will see soon the above is the only way our alternative Boolean Math will work.

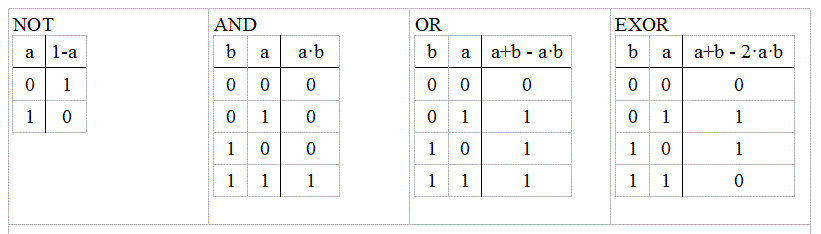

With real numbers we can transfer our Boolean Operations into simple algebra.  Like you can easily verify the Truth Table stays correct with this algebra expression

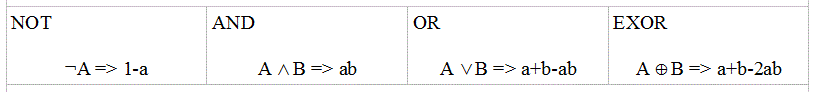

So we summarize the Boolean Operation to algebra terms:


We did not do any value restriction four our algebra variables yet. We are allowed to do  calculations with any real number.  So insert a=0.3, b=0.6 if you like and see what result you get.
But calculating the expressions with any other numbers than 0 and 1 which represents our false and true in the Boolean Space is of no interest to us.

Now lets say we have this Boolean Expression: A ∧ ¬A
Like you know from classic Boolean Algebra this can be simplified to 0 or FALSE.
How does it look in our Algebraic Boolean?


  A => a
¬A => 1-a

A ∧ ¬A => a · (1- a) => a - a^2

Of course our result is correct because you can insert 0 for a and  1 for a and you will see you end up with 0 in both cases.
But that is certainly unsatisfying in every way.

First of we got a square and it is to expect that when we deal with more unknown you will get all sort of terms with unlimited power.
Second the result did not simplify itself to 0.

One ugly thing with classic Boolean algebra is that you always have to do clean up/reducing the Boolean expression after some operation (inverse for example) and bringing them back  into a simpler form where you can continue calcuting.
This ugly Boolean behaviour was one of the  reason I looked for something else.

What is required is a Boolean Math that does self simplification.
After every calculation you automatical should end up cleared up result.

So we need to get right of any squares and powers.
Since we can have any power we should reduce every power to the same and best simplest result which would be power of 1.

a^n => a
 a^n shall be replaced with a. To be allowed to do that a^n has to be equal a!
Now for any number in the set of real numbers it is not possible.

BUT we are lucky. There are 2 real number where a^n is equal a. And we only need 2!  It's the number 0 and the number 1.





So if we limit our variables (or focus of interest)  in our algebra terms to {0, 1} only, we may set a^n = a. (where n in our case is any positive natural number without 0)

So we leave the pure algebra space and rules and add a RULE to our new algebraic Boolean Math:



This is the most important addition and Rule and the core of this new algebraic Boolean Math. Because this does all the magic:

A ∧ ¬A => a · (1- a) => a - a^2 => a - a => 0

We got rid of our power and we got the most simple result and it will make sure (without prove) to my understanding that we always get the one and only and simplest result.

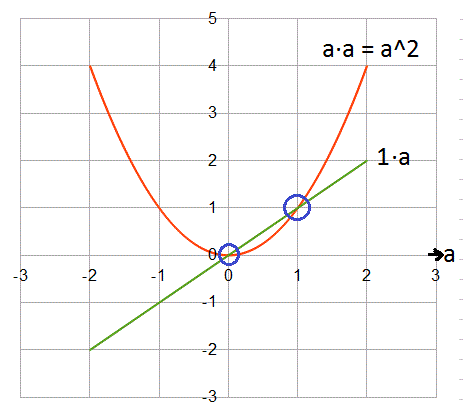

Our additional Rule did not change the outcome for any input number of 0 and 1. However it has of course changed the result for any other number than 0 and 1. If you check about a - a^2 in the graphic above where I have drawn a and a^2  you should be able to see it.
This is no advantage or disadvantage it's just something that doesn't really bother us because all we are interested in are the two numbers 0 and 1. However the variables are not restricted to those and you still may insert any real numbers. I explicit did not write a·a = a which is only correct for 0 and 1 but made and arrow as replacing rule valid for our focus of interest.


  ...so much for now.... we are not finish... there is more to come.
